POCKET BVM
1000

SAVES 75% IN SPACE
Compact design saves valuable space in your kit.
TCCC Guidelines
Meets TCCC Guidelines for respiratory support.

ROBUST PACKAGE
A durable package that can withstand the toughest of conditions

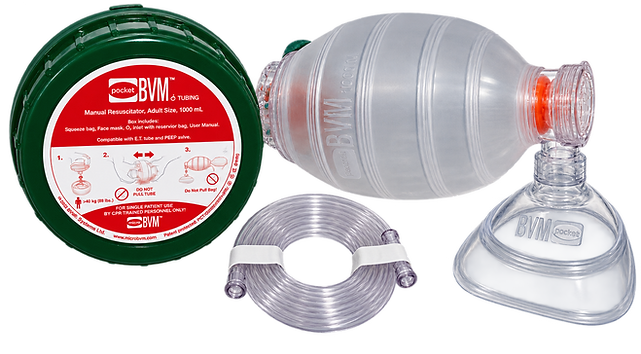

The Pocket BVM 1000
Micro BVM developed the Pocket BVM 1000 as a new addition to the Pocket BVM family, specifically to align with the Committee on Tactical Combat Casualty Care (CoTCCC) recommendations. The Pocket BVM 1000 combines the compact, space-saving design of the original Pocket BVM with a 1000 ml resuscitator bag, making it well suited for tactical and emergency medical environments.
The CoTCCC Tactical Combat Casualty Care (TCCC) Guidelines directs providers, under specified conditions of impaired ventilation and uncorrectable hypoxia, to “ventilate using a 1000 ml resuscitator Bag Valve Mask.” (Source: Committee on Tactical Combat Casualty Care (CoTCCC), Tactical Combat Casualty Care Guidelines, Respiration/Breathing in Tactical Field Care, Joint Trauma System. Under Summary of Jan 2024 Changes - 5. Respiration / Breathing in tactical field care)
The Pocket BVM 1000 is built for tactical environments where space, weight and immediate access to equipment matter. Its patented collapsible design reduces storage space by up to 75% compared with standard BVMs, allowing a fully functional resuscitator to fit into a compact, durable case measuring just 13.4 cm in diameter × 6.3 cm high (5.2" × 2.5"). Its compact profile makes it easy to integrate into medic bags, trauma kits and other space-constrained tactical loadouts.
Designed for rapid deployment in demanding field conditions, the Pocket BVM 1000 keeps the resuscitation bag, mask, patient valve and reservoir bag together in one protected package. The robust, water-resistant case protects the device during transport and allows it to be quickly carried or passed between responders, helping keep essential ventilation equipment protected, organized and ready when needed.

P.N. (Part Number): PBVM-KG
NSN # 6515-01-737-9112
The Pocket BVM 1000 compared to the Pocket BVM

Specifications
The body mass range for which the resuscitator is suitable for use | >40 kg (88 lbs.) |
Stroke volume | One hand: 600 ml |
Dead space | 4.0 ml |
Expiratory resistance | 3.6 cm H2O @ 50 L/min |
Inspiratory resistance | 4.3 cm H2O @ 50 L/min |
Delivered oxygen concentrations under various test conditions | 94.7% at input flow ≤ 15 L/min |
External dimensions of the resuscitator | 191 mm (length) x 108 mm (diameter) |
External dimensions of resuscitator in case | 63 mm (high) x 134 mm (diameter) |
Mass of the resuscitator, face mask and the resuscitator case | Resuscitator 142 g, Case. 100 g, Mask 95 g, Total < 470 g |
Resuscitator bag volume | 1000 ml |
Gas inlet tube connection | 15 mm length x 6 mm O.D. |
Patient connector | 15 mm ID / 22 mm OD nominal |
Expiratory connector (for PEEP valve attachment) | 30 mm male |
Recommended operating temperature | 0°F to +122°F (-18°C to +50°C) |
Recommended storage temperature | Tested at -40ºF and +140ºF (-40ºC and + 60ºC) according to EN ISO 10651-4:2002 |
